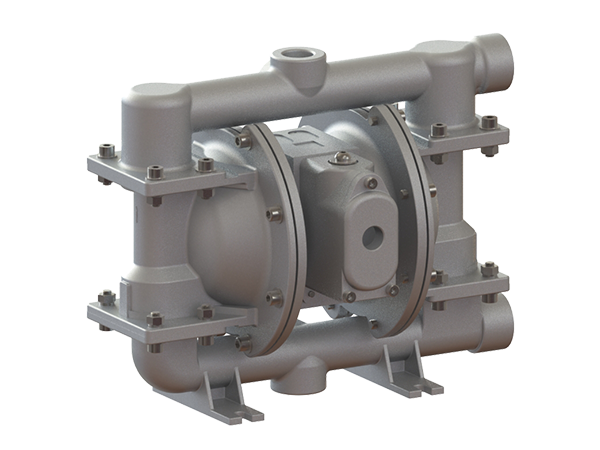

1″ Stainless Steel

Product Image

1″ Stainless Steel

Stainless Steel constructed pumps are used in applications which demand high pumping performance, combinations of hot and corrosive fluids, both acidic and alkali. They are the ultimate choice for durable long life performance. These pumps are usually combined with highly capable and corrosion resistant diaphragms, mainly PTFE and often Viton and Santoprene. With these Elastomers they are ideal for pumping of fluids like benzyl diacetone, phosphoric acid, ferric sulphate, isopropyl chloride, transformer oils and many other similar fluids. Excellent choice when pumping highly aggressive fluids such as aromatic or chlorinated hydrocarbons, acids, caustics, ketone andacetones. These pumps find wide applications across industries, some popular industries are Chemicals, Pharma, Food/Beverage and Electronic manufacturing.

  • Max Flow rate BunaN/Santoprene – 53.1 – gpm – 200.7 – lpm
  • Max Flow rate PTFE – 46.2 gpm 174.6 lpm
  • Displacement per Stroke – 0.082 gal 0.310 Litre
  • Suction Dry BunaN/Santoprene – 16.7 ft 5.1 mtr
  • Suction Wet BunaN/Santoprene – 29.8 ft 9.1 mtr
  • Suction Dry PTFE – 17.3 ft 5.3 mtr
  • Suction Wet PTFE – 28.5 ft 8.7 mtr
